Electric motor manufacturing with vertical integration

Schaeffler offers ideal solutions for the growing variety of hybrid and electric vehicle concepts around the world. With its highly efficient motors and innovative technology platforms, Schaeffler provides optimized solutions for modular electric motor systems in a broad spectrum of power and voltage ranges.​

A high level of vertical integration and many years of production expertise, allows Schaeffler to develop built-to-print electric motor components up to full build-to-spec systems with the highest power density, maximum performance, and all with unmatched quality.

Content Restricted

The following content is restricted due to your privacy settings. In order to view the content, simply activate functional cookies.

I understand, that by activating this option, the previously given data privacy consents will be updated. Read more about our Privacy Policy.


  • Advanced Cooling Concepts (DISCO)​
  • Magnet Free Options (EESM)​
  • Innovative Winding Architectures (Elmotec - Statomat)​
  • Best-in-Class Efficiency ≥ 97%

Current vehicle applications:

  • E-Axles, BEVs, & Hybrids ranging from light duty passenger to heavy duty commercial​
  • Power ratings from 20 kW to 300 kW​
  • Battery voltages ranging from 48 V to 800 V​
  • Speeds up to 16,500rpm (New designs up to 20,000 rpm)​
  • Wet & Dry Environment
Electric motor - efficient and electric
Electric motor - efficient and electric
Lamination stamping and stacking + transfer molded stack​
Lamination stamping and stacking + transfer molded stack​

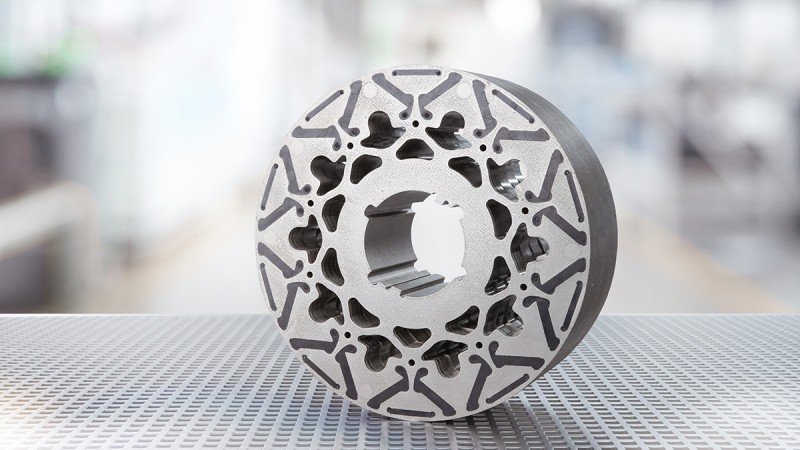

Stacking and stamping of electric steel

Lamination Technology:

  • Interlocked
  • Backlack
  • Single lamination

Lamination Thickness:

  • 0.20 – 0.35 mm
  • Machine/Tooling Technology:
  • Special lamination stamping press + high speed
  • Single / Double row tooling


  • All process steps fully automated by Schaeffler Special Machinery

Winding Technologies

Axial Hairpin

  • Forming of copper wire incl. straightening, stripping (mechanical or laser) and cutting

Continuous Wave Winding

  • Winding, forming, wrapping, and insertion processes are all developed in-house.

Concentrated Winding

  • Processes defined for stamping, over molding, calibrated winding, and joining.

Slot Insulation

  • Joining of insulation paper incl. coining, forming, and cutting

Hairpin Welding

  • Electrical contact laser welding
Continuous wave winding and axial hairpin
Continuous wave winding and axial hairpin


Do you have any questions about Schaeffler’s electric motor systems, or would you like to know more about this product? Then get in touch with us.
