FAG Split Cylindrical Roller Bearing Housed Assemblies from Schaeffler: Easy on, Easy off Offers Significant Downtime Savings!

FAG Split Cylindrical Roller Bearings Housed Assemblies from Schaeffler

Replacing a traditional non-split roller bearing is a complex procedure that involves removing gears or couplings, taking off drives and gearboxes, cutting off the old bearing and, frequently, stripping the line shafting. Converting to Schaeffler’s all-new FAG Split Cylindrical Roller Bearings eliminates many of these complications because they are engineered and manufactured in halves – so they offer the benefit of being able to be easily assembled around a shaft. All FAG Split Cylindrical Roller Bearings are available in inch (1-7/16” to 16”) and metric (40 mm to 300 mm) sizes, while larger sizes (up to 32”) and special designs can be accommodated as well. Have a special request? Contact us today!

At a glance: 7 essential advantages of Schaeffler´s new FAG Split CRB Housed Assembly

  • Super-fast bearing replacement for those hard-to-reach places
  • Self-aligning: Bearing cartridge and housing can externally accommodate ±3° of misalignment
  • Standard ductile iron: Cartridges, pedestal, and flange housings machined from high-strength 65-45-12 ductile iron (steel available upon request)
  • Drop-in solution for competitive split cylindrical roller bearings
  • Accommodates inch-size shafts from 1-7/16” to 16” and metric-size shafts from 40 mm to 300 mm
  • Made in USA
  • Easy mounting/dismounting

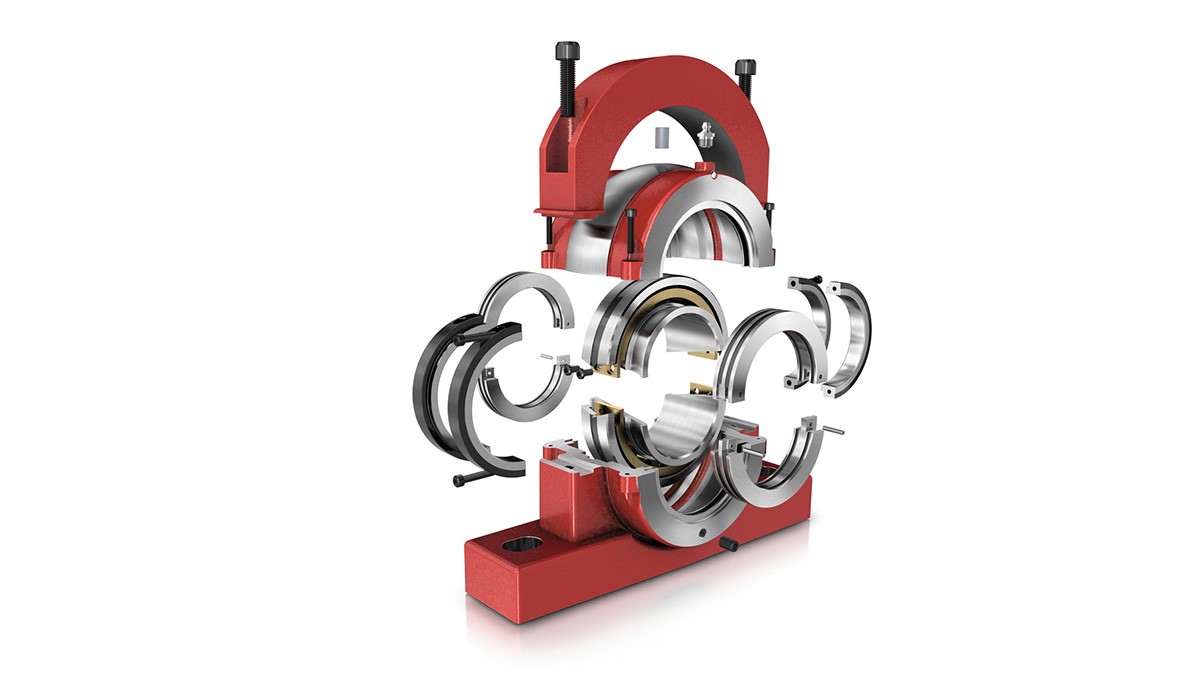

The complete bearing housing assembly consists of:

  • The housing unit, which holds/supports the cartridge and bearing assembly in the correct position and height. Made from powder coated high-strength ductile iron.
  • The cartridge, which contains the bearing assembly and seals.
  • High-performance, triple labyrinth seals that keep grease in and contaminants out. Split design ensures ease of installation; high-temperature versions available.
  • The bearing assembly, whose high-precision components include:
    • Inner race
    • Clamp collars that hold the inner race halves in place
    • Roller cage with rollers
    • Outer race

FAG Split CRBs are the perfect solution for the following industries/applications:

Key Industries

  • Mining
  • Cement & Construction
  • Pulp & Paper
  • Metals
  • Power Generation
  • Marine
  • Wastewater

Key Applications

  • Conveyors
  • Fans & Blowers
  • Motors & Generators
  • Bucket Elevators
  • Stacker Reclaimers
  • Marine Propulsion
  • Continuous Casters
